- brief introduction
- technical parameter
- Product size
Application
LMZJ1 0.5 solid type current transformer is mainly used for indoor, for rated voltage up to and including 0.5kV, rated frequency 50Hz AC circuit as the electric current andelectric energy measurement and relay protection, product adopts casting insulation, adopting bottom fixed installation.
Standard: GB20840

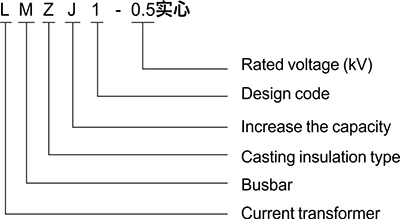

Code and implication?
Normal working/installation conditions
1. ?Installation sites: Indoor
2. ?Ambient temperature : (-5~40)℃
3. Ambient humidity: ≤80%
4. Altitude: ≤1000m
5. Atmospheric conditions: no serious impurity?in the atmosphere.
Ordering instructions
When the customer ordering, must provide the following?information:
1,product model; Current ratio; Rated output level and accurate;
For example: solid order LMZJ1-0.5, rated output current ratio 150/5 a and 5 va,Accurate magnitude 0.5 magnitude of transformer.
The order code for LMZJ1-0.5 solid 150/5 5 va a magnitude of 0.5.
4, if you have special requirements, can be customized consultation with the manufacturer.

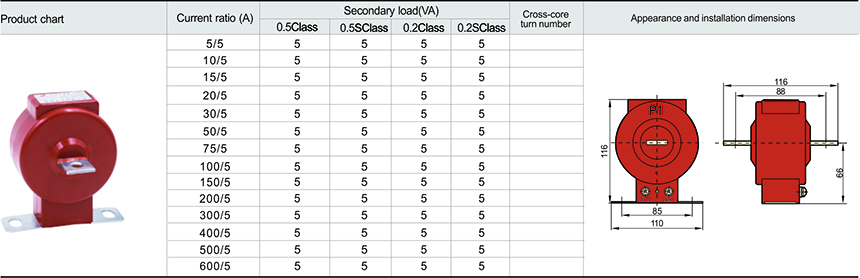

Technical parameters and installation size
